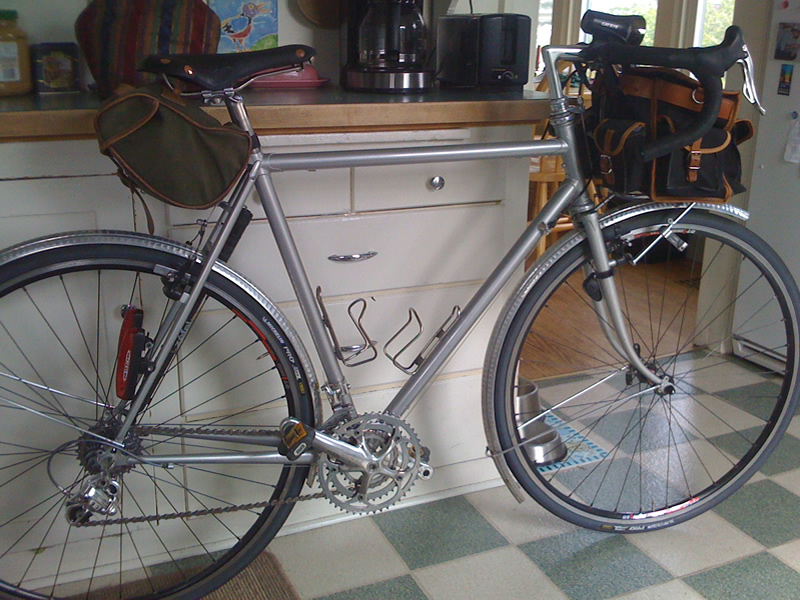

2005 Rivendell Romulus Cantilever


Built up between Oct 2006-Feb 2007 as my randonneuring bike. The ride and fit is nice, comfortable and predictable. Tom Matchak built a new fork with 65mm rake and 37mm trail (removed all TCO -thanks Tom!). Dennis Bushnell added braze-ons for rear lights, 3rd downtube cage, BB cable runs and seat stay mounted pump and extra eyelets on dropouts, then repainted in silver. Ridden in PBP 2007 and will be used for 2010 brevet season. Designed by Rivendell and built by Toyo in Ozaka, Japan and is from a small batch of frames that came with cantis and not the usual sidepulls.
Item Description
Frame: 2005 Rivendell Romulus Cantilever 57cm c-to-t/56cm c-t-c
Crankset/Chain rings: Shimano Ultegra triple Octalink 170mm. 48/38/26 TA rings. 130/74 mm BCD
BB/Crank Axle: Shimano Ultegra Octalink
Cassette: Campy 13-26 10 speed
Chain: Wipperman Connex stainless
Front derailleur: Shimano Ultegra
Rear derailleur: Campy Chorus short cage
Shifters: Campy Chorus Ergo
Pedals: Time ATAC
Brakes: Front & rear: Shimano canti with Mathauser salmon brake pads
Brake levers: Campy Chorus Ergo
Handlebars: Nitto Mod 176 44cm short reach and shallow drop
Bar Tape: Black Cinelli cork
Stem: Nitto Technomic Deluxe 9cm
Headset:Shimano Ultegra
Tires: Michelin Pro2Race 700 x 25
Rims: DT 1.1 32h front and rear
Spokes:14/15g DT stainless spokes
Rear hub: DT 240
Front hub: DT 240 (or Schmidt Dynamo)
Saddle: Brooks Swift
Seatpost: 27.2mm Chorus Ti, with setback
ComputerCat Eye Mity 3
Cages (3): King SS

Honjo hammered aluminum. Mudflaps made from a plastic cat litter container.

Lights/reflectivity: Front: Lumotech Oval Plus on Zefal rack light mount.
Rear: 2 Cateye LED LD600s (on seat stay braze-ons).
Carrying: Front: Nitto M12 rack with Berthoud
Rear: Duluth Pack banana bag
Other Stuff: Zefal HPX2 pump on left seat stay braze-on.
Size c-t-c Head Seat Rake Trail BB Drop Chain Stay Rear OLD TT
56 cm
57cm c-t
73° 72° 65 mm 37 mm 7.7 cm 43.5 cm 132.5mm 56.5 cm
2° upslope
